Product Details

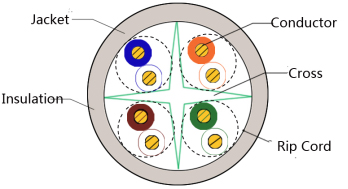

• Cross Section Drawing



  Mechanical Specifications

  Jacket Material               Low smoke zero halogen(LSZH)

  Conductor Material        23AWG Solid Bare copper

  Insulation Material         High-density polyethylene

  Cross Material               High-density polyethylene

  Pairs, quantity                4

  Rip cord                         Nylon

  Cable Outer Diameter: 6.0±0.2mm

  Jacket Color                 Grey(Other colors can be customized)

  Bending radius: 4 times the diameter of the cable

  Tensile strength: ≤ 93N; maximum retention : 25lbs (11.35kg);

  Electrical Specifications

  Characteristic Impedance                    100 ohm

  Characteristic Impedance Tolerance   ±15 ohm

  Operating Voltage, maximum              80 V

  Rated transmission speed (NVP):       67%

  Transmission delay: 530ns / 100m max. @ 100MHz;

  Environmental Specifications

  Operating Temperature                      -10 °C to +60 °C

  Storage  Temperature                        -10 °C to +60 °C

  Standards

  International :  ISO/IEC 11801; ISO/IEC 61156-5；EN55022

  National :  ANSI/TIA-568-C.2; TIA/EIA-568-B.2

  Flammability: Conforms to IEC 60332-1
